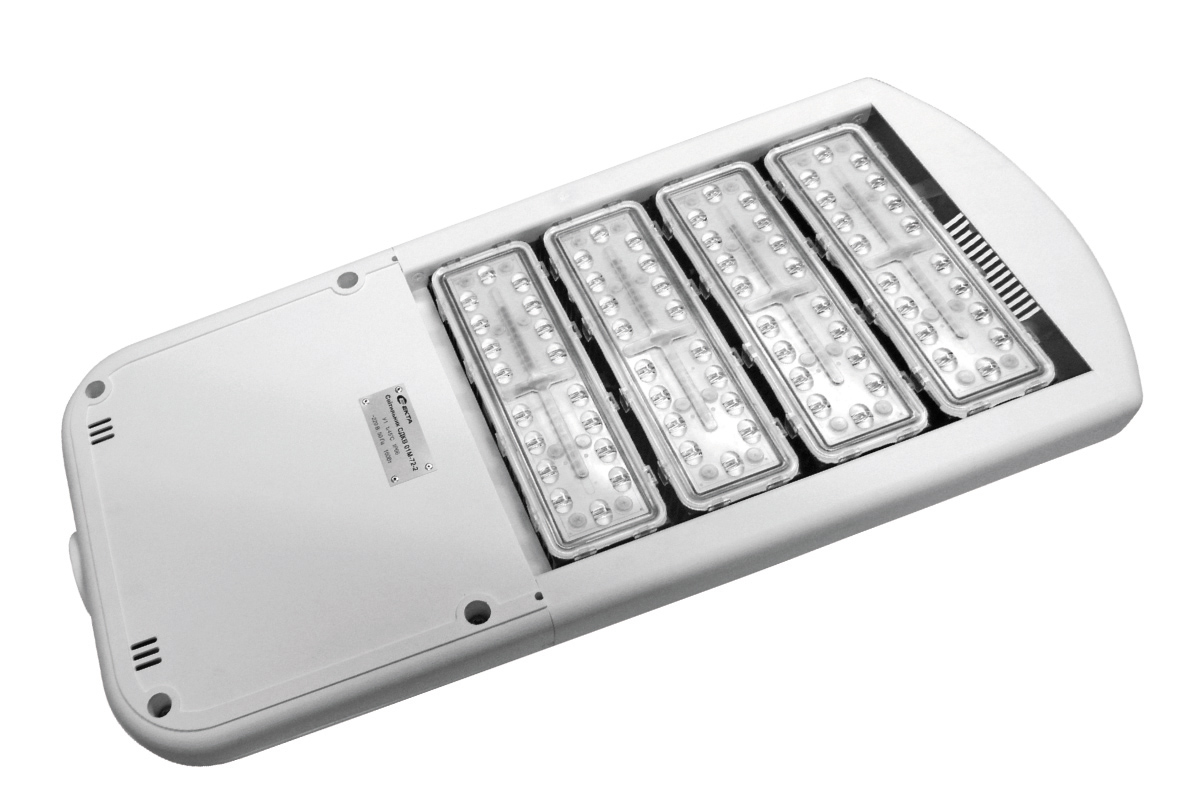

Highway LED lamp LSL 02-72 A2

Highway LED lamp LSL 02-72 A2

Main parameters and characteristics
Mount type Wall-type
Nominal power consumption, W 140
Power factor, no less than 0.92
Luminous flux, lm, no less than 15,200
Luminous efficiency, lm/W, no less than 108
Circuit voltage, frequency 187 – 253 V, 50/60 Hz
The type of light intensity distribution curve according to GOST 17677:
  • in the transverse plane
  • in the longitudinal plane

Wide
Special
Light distribution class according to GOST 17677 Direct light
Light distribution type in glare zone Fully limited
Color temperature, К 4,000 (NW) or ≥ 5,000 (CW)
Color rendering index (Ra), no less than 70
Operating temperature range according to GOST 15150 У1 (from -40 to +45°C)
Protection level according to ISO IEC 60598-1:
  • Cover protection level
  • Protection level of light-emitting modules
IP23
ІР66
Product weight, kg 9.0
Package weight, kg 10
Accordance to standards ІЕС 60598-1, ІЕС 60598-2-3, CISPR 15, ІЕС 61000-3-2, ІЕС 61000-3-3, ІЕС 61547
DOWNLOAD IES FILE
Highway LED light
Highway LED lamp LSL 02-72 А2

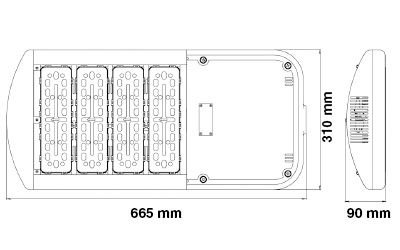

Dimensions of the lamp

LSL 02-72 A1 scheme

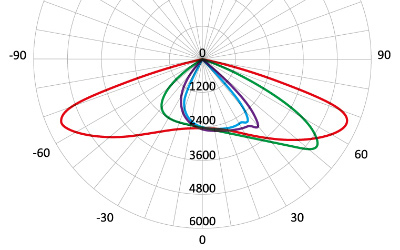

Diagram of light distribution

LSL 02-72 A1

How to buy?

To get detailed information, you can contact our manager or use the form to send the application.
